Autonomous Retrofit Kits Catalogue

In this catalogue you can find autonomous retrofit kits that are currently commercially available. The catalogue is updated on a regular basis.

Are you a manufacturer of auto-steer systems, and do you have an auto-steer system that is commercially available? Contact us at futurefarming@misset.com!




Blue White Robotics

Leveraging on 20 years of military autonomous technologies

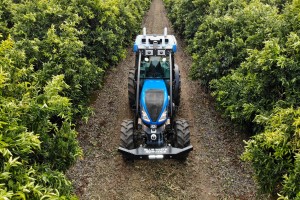

The Blue White Robotics autonomous tractor kit provides an affordable solution to automate existing tractor fleets for growers of permanent crops.

Blue White Robotics currently has around 10 systems out in the field on John Deere, Kubota and New Holland tractors and currently sells their system in the USA and in Israel.

What is the most striking according to the supplier?
The Blue White Robotics autonomous tractor kit is built leveraging 20 years of experience in autonomous technologies from Israeli air force. Combined with our autonomous farm platform, a combination of smart sensors and A.I. lets the tractor safely and efficiently navigate while operating sprayers, mowers or harvesters. This tractor kit is only one piece of a holistic combined technology offering from Blue White Robotics for a fully autonomous farm.

How does the robot tractor with your system navigate and plan its work and paths?
Our platform calculates the whole mission plan, taking into consideration the entire fleet and mission characteristics. The tractor then executes the plan while updating in real-time. We control all the tractor’s parameters, vehicle speed, engine rpm, PTO speed, et cetera. It’s a geo-fenced operation.

How are implements operated and controlled by your system?
The tractor system easily interfaces with sprayers, mowers, harvesters and discing implements, and can integrate with smart implement controllers (like AgOtter rate control and calibration devices).

What are the safety features?
The tractor system employs a variety of safety features including:

  • A LiDAR obstacle avoidance and anti-collision system
  • Computer vision obstacle detection
  • A pressure sensitive front bumper failsafe
  • Geo fence and speed control shutdown
  • A remote control kill switch
  • 4 cutoff switches both inside the cab and around the exterior of the chassis

What kind of work can your system do autonomously
Pesticide (blast) spraying, herbicide applications and mowing and soon also nuts sweeping and harvesting.

Can you switch off autonomous mode and continue as a manned tractor for difficult work/circumstances?
Yes, with a simple switch.

How many systems are currently in the field and where?
We have around 10 systems out in the field on John Deere, Kubota and New Holland tractors and we currently sell our system in the USA and in Israel.

What is the cost price per ha compared with a manned tractor?
Reduction of opex by up to 50%.

The startup says their system easily interfaces with sprayers, mowers, harvesters and discing implements, and can integrate with smart implement controllers. It is currently capable of pesticide (blast) spraying, herbicide application and mowing.
The tractor system employs a variety of safety features including LiDAR obstacle avoidance and anti-collision, computer vision obstacle detection, a pressure sensitive front bumper failsafe and Geo fence and speed control shutdown.

Video: Blue White Robotics

Website: https://bluewhiterobotics.com/

Company name and nationalityBlue White Robotics, Israel
Product nameAutonomous tractor kit
Suitable brands and tractor/vehicle modelsJohn Deere, New Holland, Kubota, Case etc.
Technical requirements for tractor/vehicleN/A
Is your solution Isobus compatible?Yes, but working without canbase
Possible minimum and maximum driving speeds3.2 km/h-11.2 km/h
0.1 mph-7 mph
Main components autonomous retrofit kitCameras & LiDAR sensors, computing, mechanical actuation, navigation systems, dual communication, safety mechanisms
Operator or driver nearby requiredNo
PriceN/A
Countries the product is for sale/rent in 2021USA, ISRAEL

Braun Maschinenbau

Driver assistance and relieving system

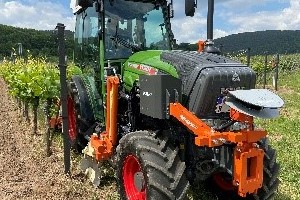

The Braun Maschinenbau Vineyard Pilot Assistant system is based on German Robot Makers’ RowCropPilot assist lane guidance system. The company is the exclusive integrator of the RowCropPilot system on Fendt tractors.

Especially for the new generation of Fendt Vario tractors, it is also possible to connect the steering of the tractor with the VPA-system. The result is a semi-autonomous tractor control that causes the tractor to execute steering commands and automatically drive in the middle of the row.

What is the most striking according to the supplier?
Mechanical undercutting of fruit trees demands the utmost concentration of the driver. Not only is precise steering of the tractor in the narrow vineyard rows necessary, it also requires the constant control and steering of mid-mounted tools left and right as well as often additional control of further implements. In order to relieve the driver in the control of the tools, Braun Maschinenbau has developed the so-called Vineyard Pilot Assistant (VPA) system. An independent system that controls the position of the implements in the interaxle, rear and front of the tractor.

How does the robot tractor with your system navigate and plan its work and paths?
With the aid of a laser scanner, both the contour of the soil and the individual vines are recorded and a three-dimensional profile image is generated. The information is transferred from the Braun VPA-system to the implements in the intermediate axle area. There is a permanent automatic positioning of the tools to the stem. At the same time, the width adjustable mulcher can also be controlled in the rear area.

How are implements operated and controlled by your system?
After activation of the system, the intermediate axle units automatically move to the working position (width and depth) when entering the vineyard rows at the optimum position. At the end of the row, the implements automatically move back to their parking/idle position.

What are the safety features?
There are various feedbacks from the system when there is an error on the hardware or software.

What kind of work can your system do autonomously?
Soil cultivation, mechanical weed control and mowing.

Can you switch off autonomous mode and continue as a manned tractor for difficult work/circumstances?
Yes, there is always an option to switch off autonomous mode and drive the tractor manually.

How many systems are currently in the field and where?
We started the development in 2016 and currently have six systems in the field. Five in Germany and one in New Zealand.

What is the cost price per ha compared with a manned tractor?
Tractor speed can be doubled while achieving significantly improved work results, e.g. less damage to the vines.

At the end of the row, the implements automatically move back to their parking/idle position.

Video: Braun Maschinenbau Vineyard Pilot Assistant

Website: https://braun-maschinenbau.info/en/

Company name and nationalityBraun Maschinenbau GmbH Germany
Product nameVineyard Pilot Assistant / RowCropPilot
Suitable brands and tractor/vehicle modelsFendt Vario 200 V/F/P
Technical requirements for tractor/vehicleN/A
Is your solution Isobus compatible?No
Possible minimum and maximum driving speeds0,5 km/h – 13 km/h
Main components autonomous retrofit kit08003 autonomy kit
08002 Row Crop Pilot
08001 Vineyard Pilot Assistant
Operator or driver nearby requiredYes
Price€48.000 / US$ 58,226 (system only, without tools)
Countries the product is for sale/rent in 2021worldwide

GOtrack

A system suitable for any tractor – old and new – with power steering

The GOtrack AutoDrive system can be installed on basically any tractor – old and new – with power steering. The system not only controls the tractor, but also implements.

The GOtrack AutoDrive system can be installed on basically any tractor – old and new – with power steering. The system not only controls the tractor but also implements.

What is the most striking according to the supplier?
Our system can be installed on most tractors with power steering. There is no need to install it on brand new, modern tractors. However, the GOtrack AutoDrive system is ready to be installed on tractors with a Canbus interface. Our AutoDrive system not only controls the tractor but also implements.

How does the robot tractor with your system navigate and plan its work and paths?
It uses teach and playback technology, generally in orchard and vineyard applications. In some applications the system calculates the paths by itself such as for grass silage production and planting.

How are implements operated and controlled by your system?We can fully control and regulate sprayers and other implements.

What are the safety features?
Our system is equipped with an obstacle detection system and if required, we deliver technology for people detection (day/night). If the tractor is equipped with Canbus, we can monitor all important errors and the system is also self-controlling. In case of wire damage, computer glitch, or lack of communication of any part of the system, everything stops (engine, tractor, et cetera).

What kind of work can your system do autonomously?
Spraying, mowing, mechanical weed control and planting. Other functionalities and operations are under development.

Can you switch off autonomous mode and continue as a manned tractor for difficult work/circumstances?
Yes, after pressing a button, the tractor comes back to normal mode. There is no need to unmount anything.

How many systems are currently in the field and where?
We started the development in 2016 and currently have 20 systems in the field in Austria, Germany, The Netherlands, Poland and Ukraine.

What is the cost price per ha compared with a manned tractor?
This was never calculated because it is too difficult to calculate. Some customers calculate only labour costs, some calculate convenience and reliability (24/7 work ability). Some are just technological geeks. Labour costs are different in every country.

GOtrack AutoDrive is equipped with an obstacle detection system and can be delivered with technology for people detection (day/night). If the tractor is equipped with Canbus, it can monitor all important errors and the system is also self-controlling.

Video: GOtrack AutoDrive

Website: https://gotrack.pl/en/start/

Company name and nationalityGOtrack – Polish
Product nameGOtrack AutoDrive
Suitable brands and tractor/vehicle modelsAll brands
Technical requirements for tractor/vehiclePower steering and good technical condition
Is your solution Isobus compatible?No
Possible minimum and maximum driving speeds0,1 km/h – 15 km/h
Main components autonomous retrofit kitMCU, steering wheel drive, clutch and brake drive, remote control, computer, sprayer/implement control box, mobile app
Operator or driver nearby requiredNo (only to start the system)
Price€35.000 / US$ 42,500
Countries the product is for sale/rent in 2021Poland, Austria, Germany, The Netherlands, France, Ukraine

GPX Solutions

Soon ready for full Isobus to ensure maximum multi brand usage

GPX Solutions’ iQuus autonomous system has been developed to integrate within current technological developments like Isobus, task control (TC) and the high-tech tractor controls. The system is ready to go full Isobus this year to ensure maximum multi tractor brand usage.

GPX Solutions says its iQuus system includes a Raven CR7 terminal and a Raven RS1 receiver to ensure maximum usage of the whole add-on package.

What is the most striking according to the supplier?
We have designed the autonomous solution as an aftermarket add-on package and included a Raven CR7 terminal with a Raven RS1 receiver to ensure maximum usage of the whole package. So next to autonomous driving it is possible to use the full Isobus functionality and guided driving when the operator is present. With Isobus UT (Universal Terminal), TC (Task Control) and in the future TIM (Tractor Implement Management), our system will be the perfect companion in the modern tractors.

How does the robot tractor with your system navigate and plan its work and paths?
We are not using the ‘teach-and-playback’ principle as previously known. Our focus is to re-drive possible paths which have been proven by the operator. Our goal was to develop an autonomous tool for growers with row crops like vineyards, orchards, hop fields and tree nurseries. Many of these special crops have row and drive patterns that will exist for multiple years, sometimes even up to 15 years! After an operator has captured/taught a routing, the iQuus GUi gives all the freedom for the operator to automate the tractor’s functionalities.

Routings can be ‘combined’ to a new routing. For example when an operator has plot A, plot B, plot C and plot D. These routings can be combined via transportation routes or just by combining the starting- and ending coordinates.

We are working on a path-planning tool based on drone images. This service should be available in 2022 and will enhance a quicker way of path building through the field.

Within our field of operations we see new demanding circumstances asking for hybrid vehicle control based on satellite localisation and vison/LIDAR. This will be our new feature for the future to drive under trees based on vision and to use satellites for tractor functions.

How are implements operated and controlled by your system?
Our way of being in control is to communicate via Isobus so the iQuus system knows the implement is working correctly. The parameters necessary to function correctly will be a consideration off the implement manufacturer. To make operations safer and easier, we’ve designed a connector which extends the safety network and has a function as dead man’s switch to check if the implement is still attached to the tractor.

What are the safety features?
Reading of the internal safety functions like fluid temperatures, fluid levels and other things. Modern tractors will generate a notification to the operator when something is wrong. This is our input for tractor malfunctions.

For the surroundings and obstacles and people detection we use LiDAR based obstacle detection in the direction of movement, emergency stops around the vehicle and remote control to start and stop the vehicle.

Furthermore we offer amongst others external control and safety for loss of power input from the battery or generator and external control of an emergency handbrake. When our iQuus system thinks it is not able to control the vehicle good enough for the required speed, it will adjust the operating speed.

What kind of work can your system do autonomously?
Our system can automate all tractor functionalities without compromising on the tractor’s usability. We rely on the implement manufacturers to have enough control at their machines to ensure autonomous driving when the implement is controllable by Isobus.

Can you switch off autonomous mode and continue as a manned tractor for difficult work/circumstances?
Yes, operators can switch between autonomous and manual mode at any time.

How many systems are currently in the field and where?
Our company was founded in 2017 and the first prototype was released in 2018. In 2019 we decided to redesign our complete hardware- and software infrastructure to ensure the quality our industry demands.

So far four Fendt tractors have been made autonomous that are all working in the Netherlands. 2021 will be our first commercial year and we are working on a dealer network to ensure customer service and support.

What is the cost price per ha compared with a manned tractor?
This is unknown to us because the tractor usage per company/field varies greatly. In our region in The Netherlands, hourly costs of good drivers is somewhere between €25 and €35 per hour. Our vision is that one good driver or operator can be deployed for other tasks or to control multiple tractors at once. In a worst-case scenario, one operator can be saved with annually 500 operational hours.

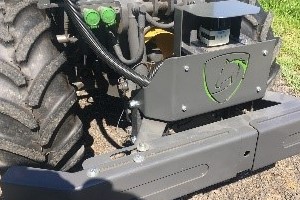

iQuus safety bumper with adjustable and interchangeable side-panels.

Video: iQuus Autonomy for the Fendt 200VFP tractors in vineyards and orchards

Website: https://gpxbv.nl/

Company name and nationalityGPX Solutions B.V. – Dutch
Product nameiQuus Autonomy
Suitable brands and tractor/vehicle modelsAny tractor with CVT/Hydrostatic/Vario
Technical requirements for tractor/vehiclePreferably Canbus controlled
Is your solution Isobus compatible?Yes, via third-party
Possible minimum and maximum driving speeds0,05 km/h – 12 km/h
Main components autonomous retrofit kitGNSS-receiver, GUI, LIDAR, Safety bumper
Operator or driver nearby requiredNo
Price€45,000-€66,500 / US$ 54,600-80,700
Countries the product is for sale/rent in 2021Europe

Sabanto

Autonomous operations as a service for American farmers

Sabanto offers autonomous farming operations as a service. This means you can’t buy their technology, but you can hire them to do planting, tine weeding, rotary hoeing, cultivating and vertical tillage on your fields.

One of the autonomous tractors built by Sabanto working the soil on a field in the US. It is remotely monitored by the Sabanto staff.

What is the most striking according to the supplier?
We have built a fleet of 60 and 90 hp autonomous tractors and have planted, tine weeded, cultivated, and performed tillage throughout US states Iowa, Nebraska, Minnesota, Illinois, Wisconsin and Indiana. The systems are deployed in multiple fields, on multiple farms, across multiple states and are monitored by our staff hundreds of miles away.

How does the robot tractor with your system navigate and plan its work and paths?
Given the path boundary, fuel and seed capacity and other agronomic constraints, we process the path and any other settings in the cloud and download said path to the remote system. Once verified, the system is initiated remotely. The system continually monitors its own performance and detects any anomalies. Additionally, the data is streamed back to our ‘mission control’, monitored by our staff.

How are implements operated and controlled by your system?
We closely monitor the performance and status of the attached implement and add appropriate sensors to the implement to detect anomalies.

What are the safety features?
We use a safety system to detect obstacles and closely monitor the health of both tractor and implement. We also have front and backwards facing cameras streaming these live video streams on the system.

What kind of work can your system do autonomously?
We are capable of and have demonstrated countless acres of planting, tine weeding, rotary hoeing, cultivating and vertical tillage.

Can you switch off autonomous mode and continue as a manned tractor for difficult work/circumstances?
Yes, we most certainly can. All our tractors are capable of being used in a manner that they were intended to be used for.

How many systems are currently in the field and where?
We were founded in October 2018 and have an extensive ‘farming as a service’ fleet situated across the Midwest in the US.

What is the cost price per ha compared with a manned tractor?
Our cost to perform a field operation is considerably less than the status quo used in row-crop agriculture across the US. Pricing however is laregely dependent upon service provided, location and number of acres requested.

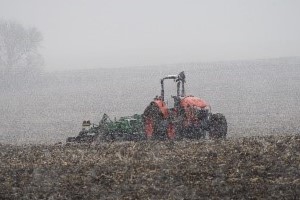

Harsh conditions like these don’t bother the cabless autonomous Sabanto tractors whereas a tractor driver probably wouldn’t go out and tillage a field in these conditions.

Videos: rotary hoeing, planting

Website: https://sabantoag.com/

Company name and nationalitySabanto, American
Product nameFarming-as-a-Service
Suitable brands and tractor/vehicle modelsKubota
Technical requirements for tractor/vehicle60-90 hp
Is your solution Isobus compatible?No
Possible minimum and maximum driving speeds16 km/h
Main components autonomous retrofit kitN/A
Operator or driver nearby requiredNo
PriceDependent upon field operation
Countries the product is for sale/rent in 2021United States

ThornTek

Automate any type of vehicle and operation

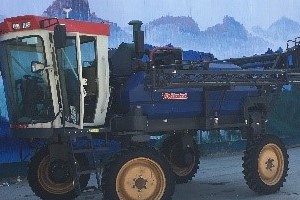

Thornfield vehicle guidance systems by ThornTek can be retrofitted to many types of vehicles and machines to perform various operations on farm land and on farms. There’s currently two systems operational in China.

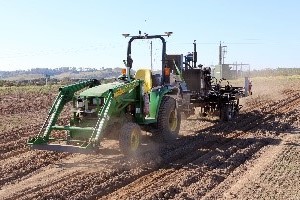

This combination is performing autonomous broad acre seeding.

What is the most striking according to the supplier?
Thornfield vehicle guidance systems can be retrofitted to many machines for precision driving at +/- 4 cm accuracy at speeds around 10 km/h and higher speeds at reduced accuracy. It controls steerable implements with +/- 2cm accuracy at speeds of 10 km/h.

How does the robot tractor with your system navigate and plan its work and paths?
Licenced users have access to an online tool that will generate paths using AB lines, smart device (such as a smart phone) based coordinates and a set of parameters. The tractor/vehicle can be positioned using the remote controller. Autonomous driving is then started using the remote controller.

How are implements operated and controlled by your system?
Implement folding/lifting is programmed at the path generation stage. Any number of sensors can be interfaced. Appropriate action can then be taken, for example, depleting chemical will text message the operator.

What are the safety features?
The ThornTek system relies on tractor’s warning and error messages to stop or shutdown (depending on warnings or critical errors). ThornTek recommends a third-party collision avoidance system supplier. ThornTek System automatically puts the tractor into safe mode if any of the software or hardware failure of the retrofitted components is detected.

What kind of work can your system do autonomously?
We can do any type of operation autonomously. Such as (spot) spraying, tramline renovating, disc ploughing, fertiliser spreading and internal transport?

Can you switch off autonomous mode and continue as a manned tractor for difficult work/circumstances?
Yes.

How many systems are currently in the field and where?
Two, both in China.

What is the cost price per ha compared with a manned tractor?
That’s unable to predict as the possible operations are widely varied.

Thornfield vehicle guidance systems by ThornTek can be retrofitted to many types of vehicles and machines to perform various operations on farm land and on farms.

Videos: TractorDemo, Autonomous Seeder

Website: http://www.autonomousfarming.com/

Company name and nationalityThornTek Autonomous Systems
Product nameThornfield Vehicle Guidance Systems
Suitable brands and tractor/vehicle modelsAlmost all
Technical requirements for tractor/vehicleElectrically controlled/hydrostatic preferred
Is your solution Isobus compatible?No
Possible minimum and maximum driving speeds0,5 km/h – 15 km/h
Main components autonomous retrofit kitGPS+Steering actuator+throttle actuator+braking (if needed)+Isobus J1939 compatible PLC+Embedded System+Software
Operator or driver nearby requiredNo
Price€54,000 / US$ 65,600
Countries the product is for sale/rent in 2021China
